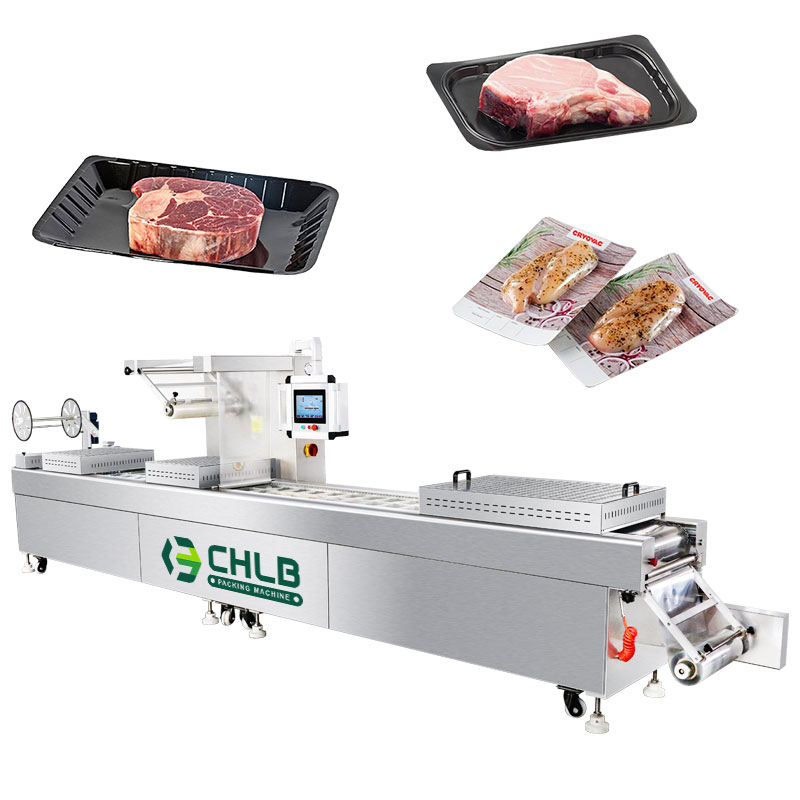

Thermoforming Vacuum Skin Packaging Machine for Food Bacon Beef Pork

Thermoforming Vacuum Skin Packaging Machine for Food Bacon Beef Pork

Clients only need to prepare film rolls at site, and put them on the thermoform packer, then the machine will automatically form required shape of tray, also process packing on the same machine. The machine can support flexible shapes, avoid touch between food and workers, also save labor cost and save cost of package material. Plus it can extend the shelf life of food after packing. Meat Frozen Fish Vacuum Packing Machine thermoforming skin packaging Termosellado para Embalaje de Carne y Pescado Auto thermoforming packaging machine Thermoforming Machine is a fully automatic vacuum packaging machine and is applicable for vacuum, gas-filling and skin packaging of foods, meat products, seafood, fruits, vegetables, pickles, cooled meat, medicine products, metal elements, and medical apparatus. It’s an automatic packaging machine. It’s able to finish the whole process from package forming, filling/loading,sealing to final cutting. With special technology, it’s helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.

Highlights

High capacity---produce over 10,000 small packs per day
Cost effective---saving over 30% cost than traditonal packing
Easy operation---by finger touch on PLC screen.
Reliable quality---spare parts of international top brands.
Flexible design--- Various package shapes,volumn and output

Product Features

User only need to put tray on the machine, the machine will automatic feed trays into a closed chamber for vacuum skin pack and then output trays with high speed. This way save man labor, and avoid further touch between worker and food.
This machine is suitable to be built with a whole packing line, working together with automatic tray feeder, label machine, weight machine, metal detector. we can offer them all if there is need.

Advantage
* Individually built for your trays
* Automatic tray feeding, more sanitary

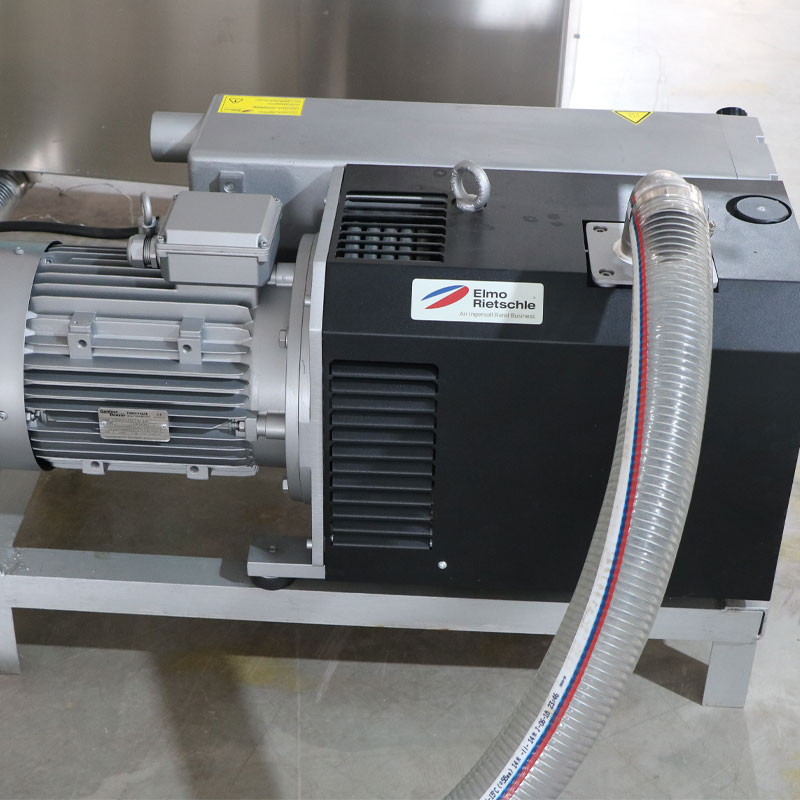

* Installed with German vacuum pump
* Prolong shelf life of food
* Continuously packing

* CE certificate
* Installed with conveyor, enable it work with other machines
* The tray can be heat in microwave oven
* Food more attractive on shelf
* Easy open corner on tray
* Special tray detector

* Offer video before balance payment
* Special training video for each machine
* Remote access for control system as option
1.One machine can support both modified atmosphere packing(MAP for short) and vacuum skin pack(VSP for short)


We can also supply tray and film, if client buy our machine together

Shipping terms. CIF price based on the seaport the machine shipped to.

The voltage is 380V/50HZ/3phase. We also customize machine with different voltage if client require it.

Remote access. We have another option with local brand touch screen, so that it can support remote access for process monitor, program upgrade, language modify.

The packing mold will be customized accordingly to actual tray sample.

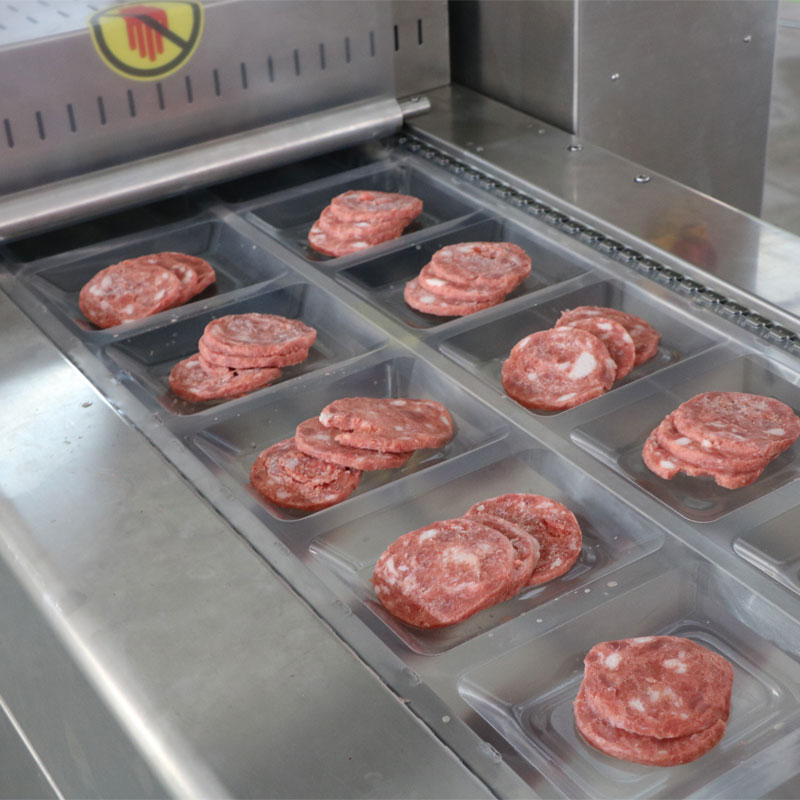

It can pack several trays at the same time. Following layout is just for reference.

Get in Touch

*We respect your confidentiality and all information are protected.

Product Specifications

Voltage 220V/380V/450V 50/60HZ 3phase
Controller IDEC PLC Weinview touch screen
Vacuum pump BUSCH
Vacuum degree Maxi 0.1Mba
Material Mainly 304SS
Multi tooling Include one customized packing mold
Packing capacity About 2-3 cycles per minute
Weight accuracy About 750KG
Power consumption About 8KW
Certificate CE
Guarantee 1 year
Language English/Chinese/Spain for option
Air compressor Not include in the price The air pressure shall be about 0.6-0.8Mpa
Function Form container vacuum skin pack seal cut.

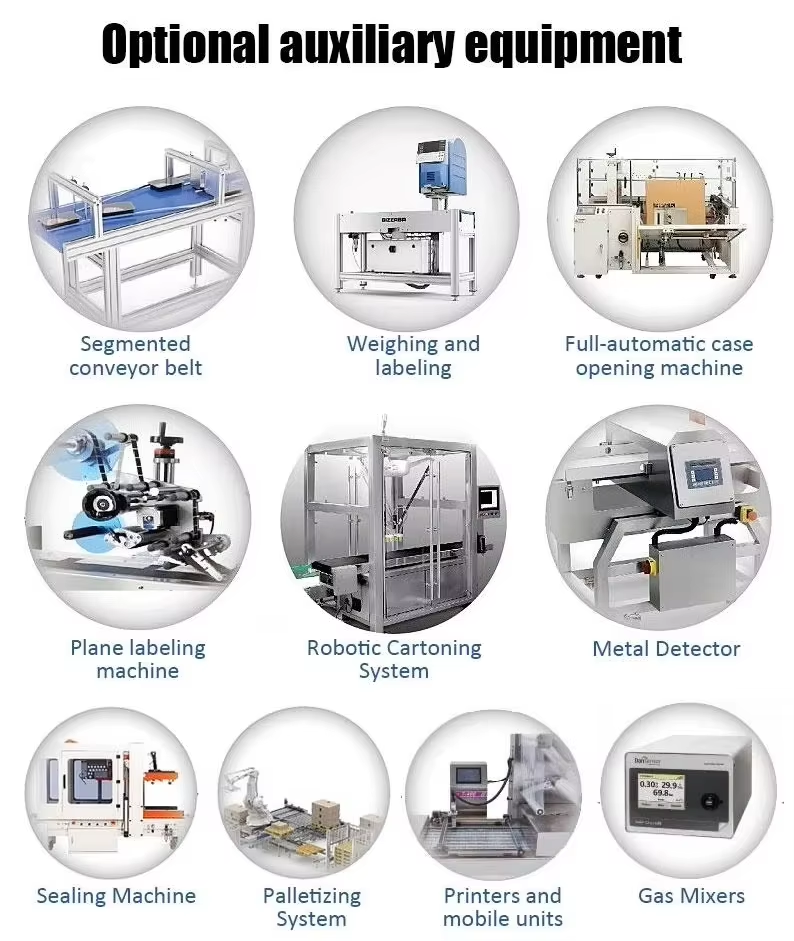

Optional Devices
